Gravity Casting Services

Our range of products include gravity / permanent mold casting, gravity casting services, gravity die casting, aluminum die casting, gravity permanent mold casting and gravity high pressure die casting.
Gravity / Permanent Mold Casting
  • Gravity / Permanent Mold Casting
  • Gravity / Permanent Mold Casting
  • Gravity / Permanent Mold Casting

Gravity / Permanent Mold Casting

Get Latest Price

Product Brochure

Product Details:
MaterialSteel, cast iron
Gravity Casting ProcessStatic filling, tilt pouring
Surface TreatmentSandblasting, painting, polishing
Weight Range0.05 kg ~ 20 kg
Casting TypePermanent Mold
SizeCustomised
If you want to go for mass production and that also for fully mechanized casting, then Gravity Die Casting is a good casting process. For producing smooth and textured, well defined, accurately dimensioned metal parts, this method is also very good process. Our die casting, aluminium gravity die casting and aluminium die casting services are of excellent quality. We have a vast pool of knowledge to make gravity die casting, aluminium gravity die casting and aluminium die casting. Our knowledge in this regard is as per the international standards and we adopt new innovative knowledge from time to time. We are the manufacturer and supplier of aluminum gravity die casting.
Get Best QuoteRequest A Callback
Gravity Casting Services
  • Gravity Casting Services
  • Gravity Casting Services
  • Gravity Casting Services

Gravity Casting Services

Get Latest Price

Product Brochure

Product Details:
Molding TechnicPermanent mold
MaterialCast iron or steel, copper, graphite and aluminum
MethodsStatic filling, tilt pouring
FrequencyRegularly
Usage/ApplicationIndustry applications
BrandRajshi
Casting Services of Gravity / Permanent Mold Casting
Gravity / Permanent Mold Casting is comprised of mold cavities fastened into metal die blocks and designed for repetitive use. Presently, molds are generally made of cast iron or steel, although copper, graphite and aluminum have been utilized.

The gravity permanent mold is the flow of metal into a lasting mold. The two methods that are used includes: static filling, where metal is introduced into the top of the mold via downsprues similar to sand casting; and tilt pouring, where metal is filled into a basin whilst the mold is in horizontal location and runs into the cavity as the mold is steadily tilted to a vertical position. Generally, Gravity molding is perfect owing to its more accurate attribute than shell molding. This is preferred almost exclusively to shell molding for light alloy components.

Benefits:
  • Gravity casting is lucrative
  • Produces superior quality components
  • Offers process control
  • Is greatest for creating small scale parts
  • Does not need a large machine to inject the metal
  • Needs much less start up cost than die casting
  • Lends itself to more material types.
Get Best QuoteRequest A Callback

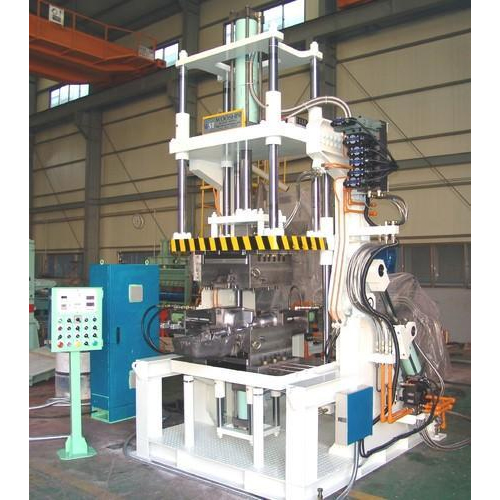

Gravity Die Casting
  • Gravity Die Casting
  • Gravity Die Casting
  • Gravity Die Casting

Gravity Die Casting

Get Latest Price

Product Brochure

Product Details:
MaterialAluminium
SizeCustomised
BrandRajshi
FinishingPowder coating or liquid painting
ProcessStatic filling,tilt pouring
Casting Temperature750 Degree C

In gravity die casting molten aluminium is poured into a metallic tool. The casting temperature is about 750°C. The tolerances and surface finish are good. The use of sand cores in gravity die casting enables casting of very complex components.

Gravity die casting method is competitive casting method when production quantity is relatively small or when heat treatment is needed to improve the mechanical properties. This casting method gives better tolerances and surface finish than sand casting. The tooling costs are somewhat higher than by sand casting.

Specification:

NAME OF MACHINE
  • VERTICAL GRAVITY DIE CASTING MACHINE
1
HYDRAULIC SYSTEM
  • CASTING OF TANK : 200 LTR
  • SYSTEM PRESSURE - 80 BAR.
  • OIL - SERVO 68 OR EQUIVALENT.
2SUPPLY VOLTAGE
  • 415 + 10%, 3 PHASE,50 HZ
3ELECTRIC MOTOR
  • 3 PHASE SUPPLY, 1.5 KW (2HP)
4AIR SUPPLY
  • FRL ½”
5AIR PRESSURE
  • 6 BAR
6TOTAL CONNECTED LOAD
  • 3 KVA
Get Best QuoteRequest A Callback

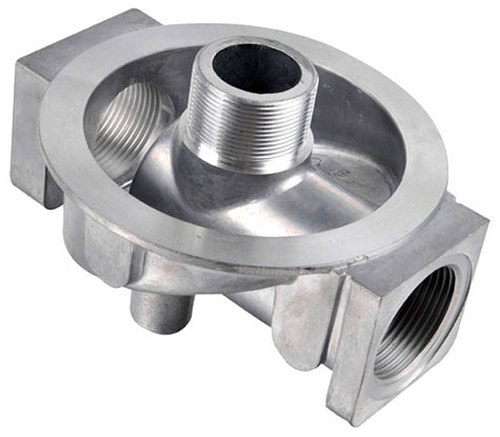

Aluminum Die Casting
  • Aluminum Die Casting
  • Aluminum Die Casting
  • Aluminum Die Casting

Aluminum Die Casting

Get Latest Price

Product Brochure

Product Details:
MaterialAluminium
ShapeRound
Weight2 g to 1500 g
Surface TreatmentPowder coating,Painting,Shot blasting,Polishing,Electrical galvanizing,Chemical galvanizing
Tooling Time20- 25 days
Aluminum Die Casting produces highly repeatable, complex shapes and at very competitive prices. Aluminium is strong, light-weight, corrosion resistant, readily plateable and electrically conductive. That’s why aluminium die castings are preferred worldwide when performance, good looks and low cost are important. With cast-in steel components, extreme abrasion and wear resistance can be added to standard benefits of aluminium die casting. Rajshi uses cold chamber machine die casting for aluminium because of its high melting point. In cold chamber die casting, a precise amount of molten metal is fed into a “cold chamber” where hydraulic plunger the forces metal into the sealed die at high pressures.
Get Best QuoteRequest A Callback

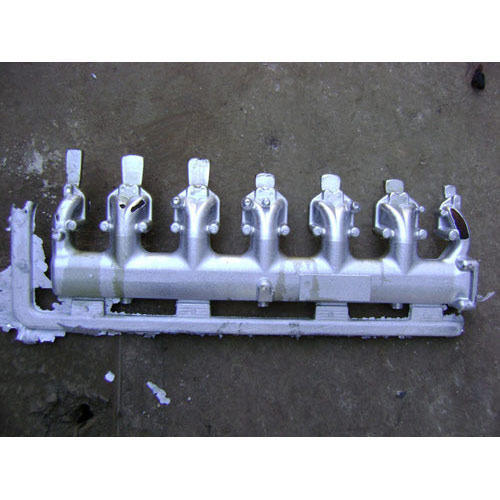

Gravity Permanent Mold Casting
  • Gravity Permanent Mold Casting
  • Gravity Permanent Mold Casting
  • Gravity Permanent Mold Casting

Gravity Permanent Mold Casting

Get Latest Price

Product Brochure

Product Details:
MaterialSteel, cast iron
Surface TreatmentSandblasting, painting, polishing
Weight Range0.05 kg ~ 20 kg
Casting TypePermanent Mold
Casting MethodGravity Casting
Gravity Casting ProcessStatic filling, tilt pouring
Gravity Permanent Mold Casting services offered are delivered using latest process technology support.

Features:
  • Expertise in offering superior metal casting solutions
  • Permanent mould casting utilizes a metal mould made from steel or cast iron
  • Suitable for high-volume production of small, simple metal parts
  • Suitable for parts with uniform wall thickness
  • Solutions available in non-ferrous metal choices like aluminium alloys, magnesium alloys, copper alloys
Get Best QuoteRequest A Callback

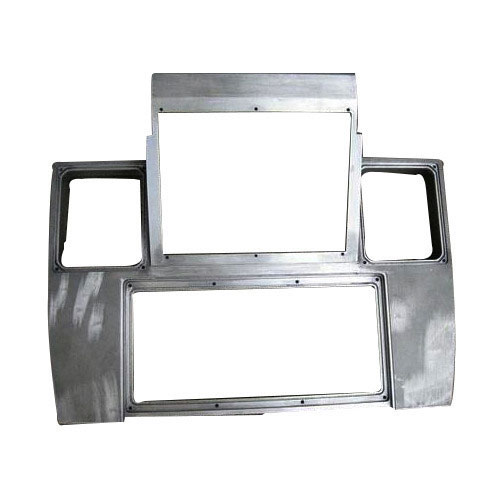

Gravity High Pressure Die Casting
  • Gravity High Pressure Die Casting
  • Gravity High Pressure Die Casting
  • Gravity High Pressure Die Casting

Gravity High Pressure Die Casting

Get Latest Price

Product Brochure

Product Details:
Die Casting TypeGravity Casting
MaterialAluminium
Surface TreatmentPolishing, heat treatment, painting, power coating, anodizing
Weight0.050 to 5 kg
Machine UsedCNC, milling machine, drilling machine
Alongside our aluminium and zinc, high pressure dies castings, we offer Gravity High-Pressure Die Casting that is tailored to your specific needs. Our talented design team will work with you every step of the way from the design stages of an aluminium and zinc casting to the finished product. We work hard to ensure that you receive aluminium and zinc castings of the highest quality, at a price that works for both parties through continuous stringent value engineered cost reductions.

Features:
  • High quality
  • Reasonable price
  • Delivery on time
  • Quality Assurance
Get Best QuoteRequest A Callback

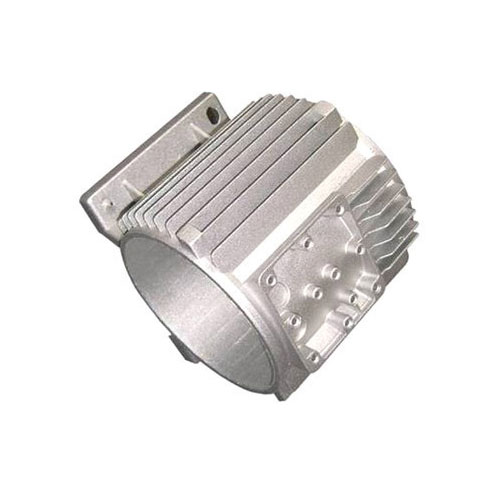

Aluminium Gravity Die Castings
  • Aluminium Gravity Die Castings
  • Aluminium Gravity Die Castings
  • Aluminium Gravity Die Castings

Aluminium Gravity Die Castings

Get Latest Price

Product Brochure

Product Details:
Die Casting TypeGravity Die Casting
FinishingPowder coating or liquid painting
MaterialAluminium
Casting Temperature750 Degree C
ProcessStatic filling, tilt pouring
In gravity Die Castings the bucket throwing liquid aluminium is filled a metallic apparatus. The throwing temperature is around 750°C. The resilience and surface complete are great. The utilization of sand centres in gravity bite the dust throwing empowers throwing of exceptionally complex parts.
Get Best QuoteRequest A Callback
Gravity Casting Dies
  • Gravity Casting Dies
  • Gravity Casting Dies
  • Gravity Casting Dies

Gravity Casting Dies

Get Latest Price

Product Brochure

Product Details:
Usage/ApplicationIndustry applications
Surface FinishPowder coating or liquid painting
Casting TemperatureUp to 750 Degree C
ProcessGravity Die Casting
MaterialAluminium,Iron
We are engaged in offering Gravity Casting Dies which is made by using modern technology and high-quality raw material.
Get Best QuoteRequest A Callback
